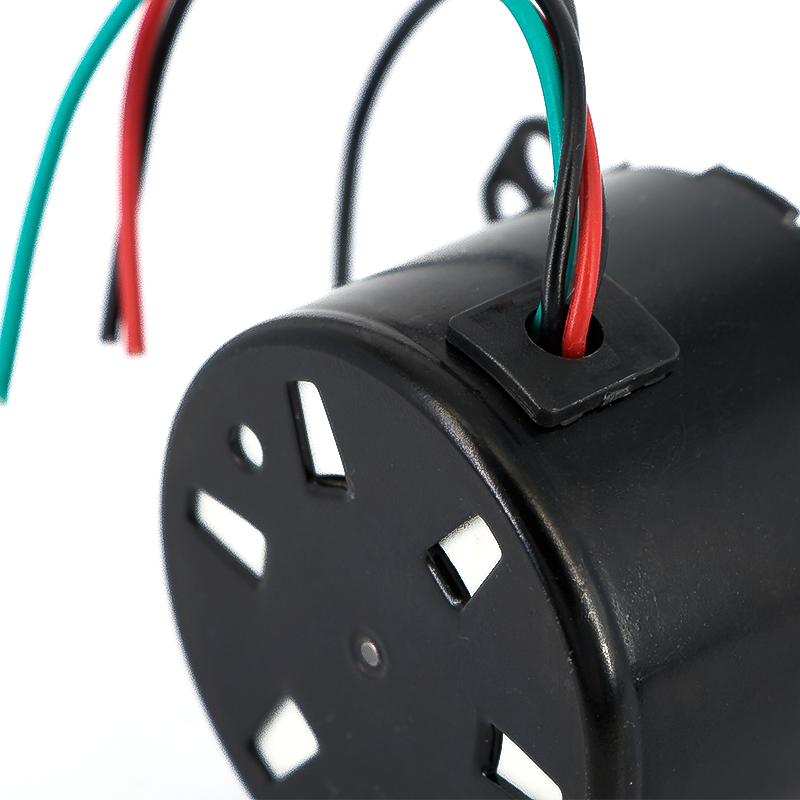

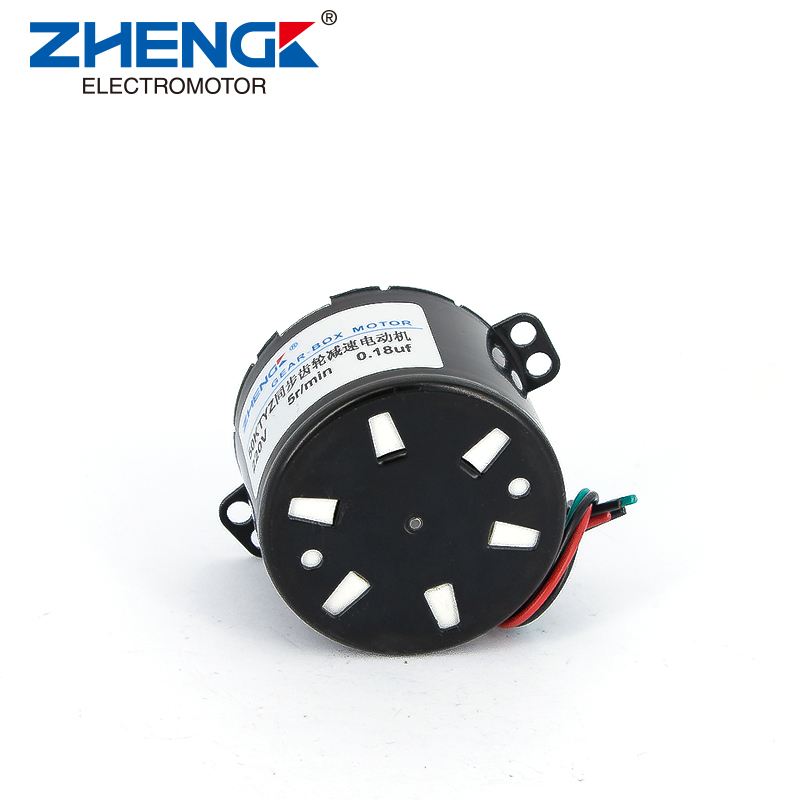

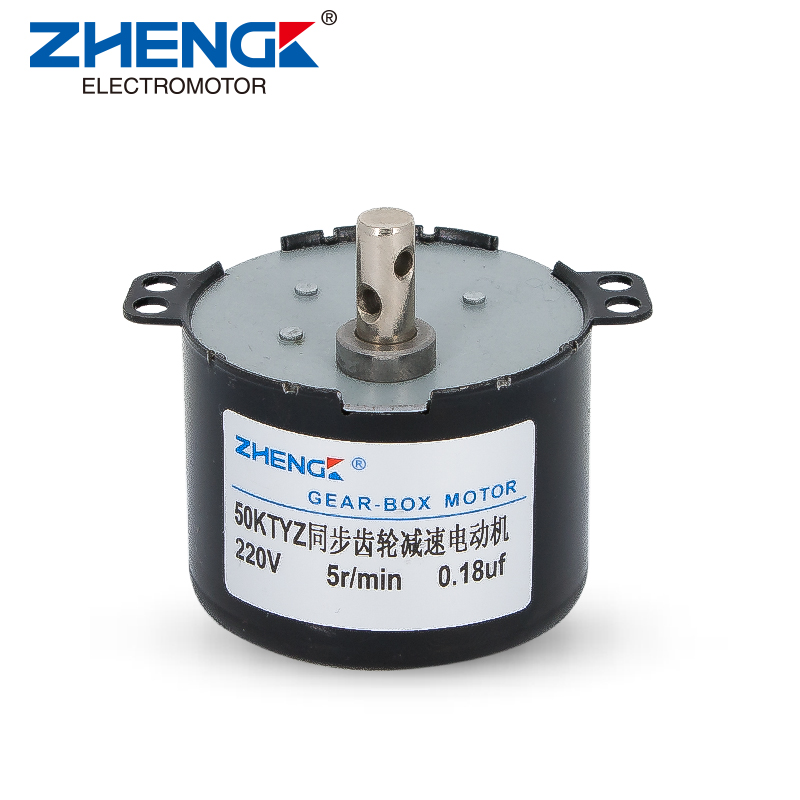

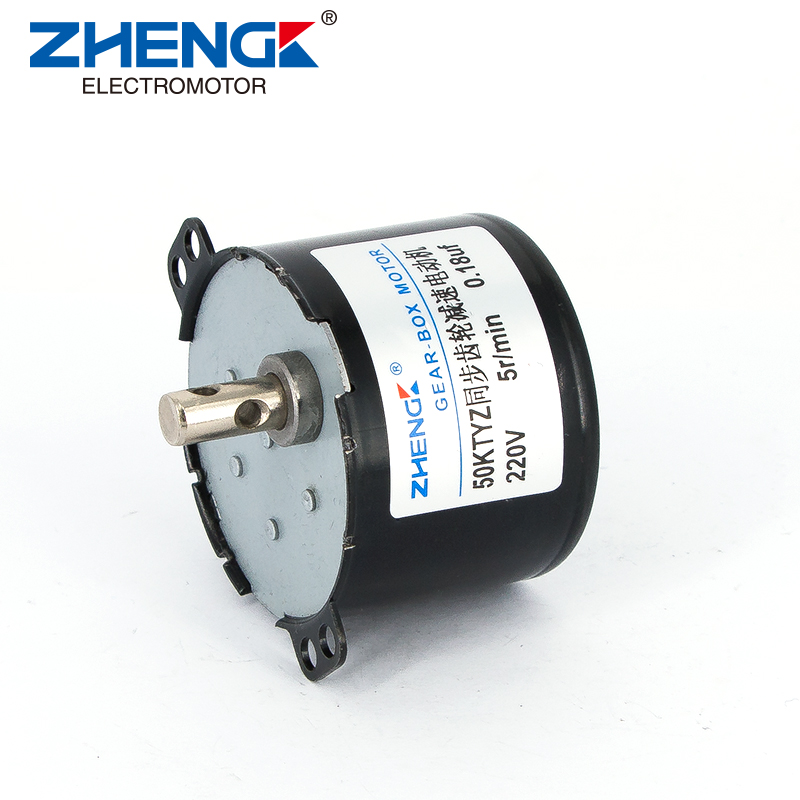

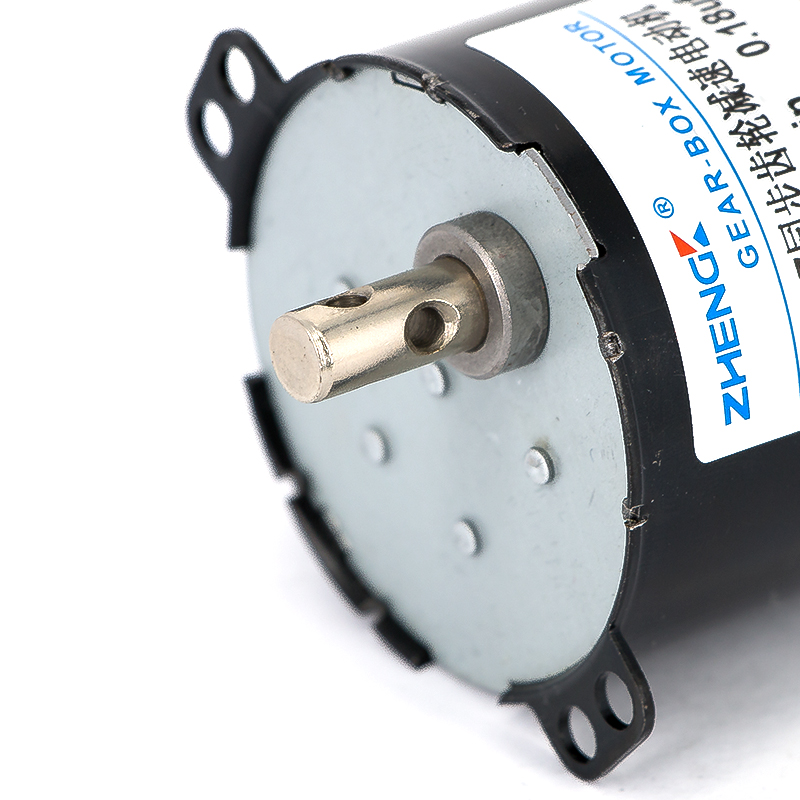

50KTYZ D50mm Ac Synchronous Gear Motor

Model: 50KTYZ, Motor Body Diameter: 50mm, Motor type: AC Synchronous Motor, Eccentric Shaft, Gearbox integrated, Voltage: 24VAC/110VAC/220VAC, Frequency: 50/60Hz, Rotating direction: CW/CCW, Applications: Egg incubators,Monitor pan/tilt, Dishwasher, electric machinery, heating and cooling valves, automatic instrumentation, electric models, electric advertisements, Projector screen, plastic machines, barbecue equipment, electric subpoena devices and all low-power and low-speed operation equipment.
Speed: When the synchronous speed requirement is high, a synchronous motor with large phase current and small inductance should be selected to increase the input power. When selecting a driver, a higher power supply voltage should be used.

product details

Product Features

AC Synchronous motor, low power consumption, low noise, large torque.

Constant speed, not affected by voltage, and not easily damaged due to stalling

Gears combined with metal and plastic ensure that the motor works reliably and quietly.

Support customization, such as motor shaft, speed, torque, and wire length.

Zhengke AC Synchronous Motor features precise speed control, high efficiency, and high power factor; as much as 20% higher efficiency over conventional synchronous type motors and as much as 30% higher power factor that uses less current than conventional synchronous motors.

There is no need to buy tachometers and regulators that are required by AC synchronous motors when you use AC motors.

AC motors specifically use the process of electromagnetic induction to convert alternating current into mechanical energy. These motors run on AC using a stator and a rotor, where the stator remains stationary and the rotor rotates.

Depending on the application, single-phase or three-phase AC motors can be used. Three-phase AC motors are well suited for applications that require a lot of power conversion, while applications that require less power conversion tend to use single-phase AC motors. For example, single-phase AC motors are widely used in residential and commercial appliances.

two main categories of AC motors

There are two main categories of AC motors: synchronous motors and induction motors. In both of these motors, the rotor speed is different from the stator speed.

AC synchronous gear motor for sale at favorable price, single-phase, 10 rpm low output speed at 40 Kgf•cm output torque, optional voltage 24V/ 110V/ 220V – 240V, 50/ 60Hz, duty type S1 continues or S2 (30 mins). It is CW or CCW rotation at a constant speed.

Advantages of AC synchronous motors

AC synchronous motors have high power efficiency and high power factor.

AC synchronous motors use permanent magnet poles, especially rare earth metal permanent magnets such as neodymium iron boron, which have a large magnetic energy product and can obtain a higher air gap flux density. Therefore, at the same capacity, the synchronous motor is small in size and light in weight.
